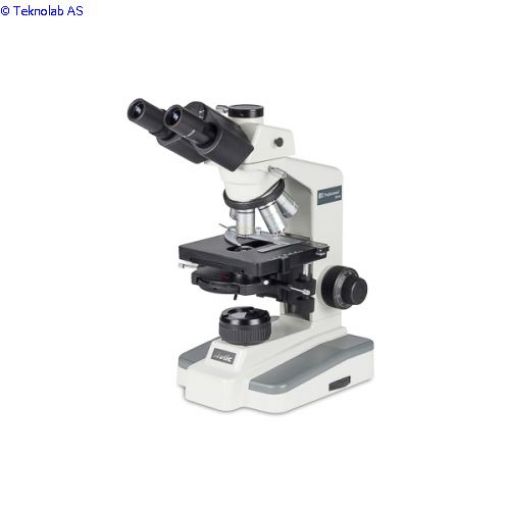

    Biological microscope MOTIC B3 Phase series with PCS, binocular, EU plug

    Varenr: LB.BMPH-H02-001
    Tilgjengelighet: Bestillingsvare
    Kontakt oss for pris
    Binocular or trinocular head (according to model) Siedentopf type, 30º inclined and 360º rotating. Widefield WF10X/20 mm eyepieces. Reversed quintuple revolving nosepiece with click stops and Plan achromatic objectives PL 4X. Phase Contrast Plane Objectives: PL Ph 10X/0.25, 20X/0.40, 40X/0.65/S, 100X/1.25/S-Oil. Coaxial coarse and fine focusing system with tension adjustment. Built-in low position coaxial mechanical stage with sample holder. Phase contrast 5 position Abbe condenser N.A. 1.25 (BF &: PH 10X, 20X, 40X, 100X). Telescopic centering eyepiece. 12V/20W Halogen Koehler illumination with intensity control. Universal supply 100-240 V (CE). Blue, yellow and green filters, dust cover and immersion oil. 5 years warranty on optical and mechanical components. Delivery time 2-3 weeks

    reference: BMPH-H02-001, description: microscope, B3 220 Phase, binocular head, pcs/pack: 1
    Produktspesifikasjoner
    LabboxfilterBiological Microscopes
    *
    *
    *
    Produktetiketter
    Enhet:
    EA
