Equilab Automatic 40mm Press - Auto. to 40 ton (programmable)

EQP-100

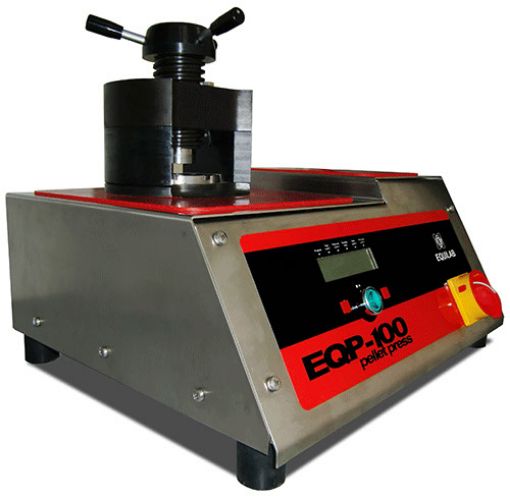

Semiautomatic Pellet Press

The Equilab Pellet Presses have been especially designed to obtain pellets of great quality finish, with a high level of cohesion and stability, and with very flat, even and crack free surfaces.

The EQP-100 Semiautomatic Pellet Press can exert up to 40 tons to prepare Ø 40 mm pellets. With a simple and robust design, this unit is very effective and easy to manage, and offers up to five different working programs of single and double cycle.

Technical specifications

Method: pressure.

Application: cement industry, metallurgy, thermal power plants, environmental laboratorios, recycling plants, geology and mineralogy, ceramics, other.

Speed control: frequency converter 25/75 Hz

Maximum pressure: 40 / 50 tons

Diameter of the pellet: 40 mm

Engine power: 750 W

Power supply: 220 V

Consumables: aluminium cups Ø 32 / 40 mm, binding agent

Dimensions: 40 cm (high) x 51 cm (long) x 42 cm (wide)

Approximate weight: 75 kg
