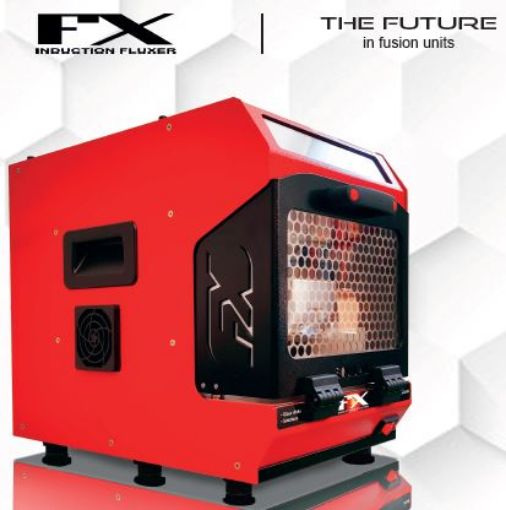

Equilab FX1 Induction Fluxer discs and solutions - Modular

Method: fusion, stirring, mixing and homogenization.

Applications: geological samples, cements, minerals, slag, ceramics, oxides, glass, metals, ferroalloys, sulphides, fluorides, alloys.

Produces: glass disks for X-Ray / peroxide or pyrosulphate solutions / samples for AA and ICP.

Programs: 50 independent editable programs.

Maximum consumption: 1500 W

Power: 220 V - 15 A

Control: PC

Cooling system: closed circuit with a 300 W chiller / open circuit via external feeding 1,5 LPM.

Work frequency: 130..160 KHz.

Programmable elements: crucible stirring system / crucible stirring angle / speed and pouring angle / revolutions system for the solutions / crucible and mold cooling down system by fan

Temperature control: 400 to 1200ºC limited by software.

Software: intuitive, with graphics. Diagnosis and settings.

Accessories: platinum and zirconium crucibles, platinum molds.

Dimensions: 42 cm (high) x 35,5 cm (long) x 50 cm (wide)

Approximate weight: 43 kg
