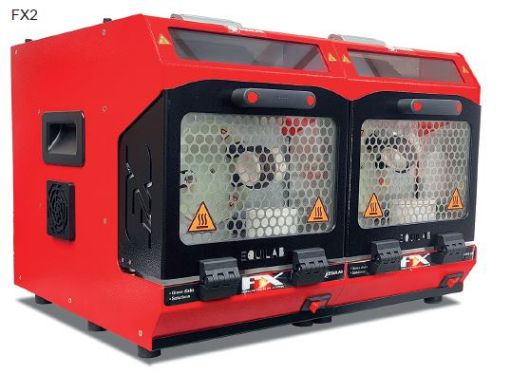

Equilab FX2 Induction Fluxer discs and solutions with2 modules

To eliminate combustible gases from laboratories, the F Series represent a real technological step forward in the fusion units, as it heats up via electric induction, homogeneously, quickly and efficiently.

The F2 Induction Fusion Unit has been especially designed to facilitate and speed up the preparation of glass disks for analysis by X-Ray, AA solutions and for ICP analysis. The purpose is to produce, accurately and quickly, beads and dissolutions with classic fluxes (Borates), as well as to undertake high quality oxidations of elements non oxidized, using peroxides. Its performance is highly efficient both at high and at low temperatures.

Method: fusion, stirring, mixing and homogenization.

Applications: geological samples, cements, minerals, slag, ceramics, oxides, glass, metals, ferroalloys, sulphides, fluorides, alloys.

Produces: glass disks for X-Ray / peroxide or pyrosulphate solutions / samples for AA and ICP.

Programs: 50 independent editable programs.

Maximum consumption: 1500 W

Power: 220 V - 15 A

Control: PC

Cooling system: closed circuit with a 300 W chiller / open circuit via external feeding 1,5 LPM.

Work frequency: 130..160 KHz.

Programmable elements: crucible stirring system / crucible stirring angle / speed and pouring angle / revolutions system for the solutions / crucible and mold cooling down system by fan

Temperature control: 400 to 1200ºC limited by software.

Software: intuitive, with graphics. Diagnosis and settings.

Accessories: platinum and zirconium crucibles, platinum molds.

Dimensions: 33 cm (high) x 60 cm (long) x 51 cm (wide)

Approximate weight: 43 kg
