Equilab Manual Hydraulic Press

The Equilab Pellet Presses have been especially designed to obtain pellets of great quality finish, with a high level of cohesion and stability, and with very flat, regular and crack free surfaces.

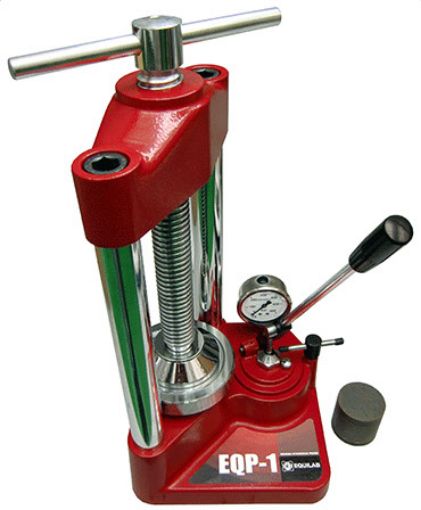

The EPQ-1 Manual Pellet Press can exert a pressure of up to 20 tons. It is very easy and safe to use, and takes very little space.

Technical specifications

Method: pressure

Applications: cement industry, metallurgy, recycling plants, geology and mineralogy, ceramics, other.

Maximum pressure: 20 tons.

Diameter of the pellets: Ø 32 / 40 mm (other sizes on demand).

Consumables: aluminium cups Ø 32 / 40 mm, binding Wax-C.

Dimensions: 50 cm (high) x 22 cm (long) x 23 cm (wide)

Approximate weight: 20 kg
