GAS FLOW METER GF1010

Varenr: 143.2709-10100

Tilgjengelighet: Bestillingsvare

kr 11 431,00

Beskrivelse
Kontakt oss

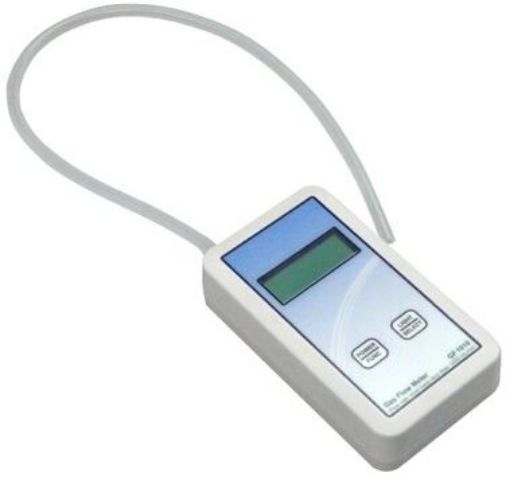

The new compact-portable GF1010 gas flow meter makes gas flow measurement easier and more accurate, helping to eliminate user errors. The GF1010 is an essential tool for troubleshooting and routine maintenance of your gas chromatograph. The LCD display with back light makes flow rate legible. As an option, a Silicone cases are available to protect the flowmeter from shock.

Measurable Flow Range	0.5 - 1200 mL/min (Display Range : -0.1 - 1400 mL/min)
Accuracy	± 3 % or ± 0.3 mL/min. whichever is greater (Calibration gas: N₂)
Operating Temp. Range	15 - 30 ºC (Operating Temp. Range where the accuracy isn't guaranteed: 10 - 40 ºC)
Tube	Tube: 3 mm l.D., 7 mm O.D. (Operating Temp.: up to 200 ºC)
Measurable Gases	N₂, Air, He, Ar, H₂ or etc. Caution! Do not use the flowmeter to measure corrosive and humid gas.
Battery	2 AA
Standards	WEEE, RoHS, CE
Dimension	76 (W) x 135 (D) x 35 (H) mm (Excluding protrusion)
Weight	Approx. 240 g excluding battery
