    Gas Sampling Bag Multi-Layer Foil 12L 13" x 24" w/ polypropylene combo valve & septum 1 eyelet 5

    Produsent: RESTEK CORP.
    Varenr: R22966
    Tilgjengelighet: Bestillingsvare
    kr 2 358,00

    Multi-Layer Foil Gas Sampling Bags

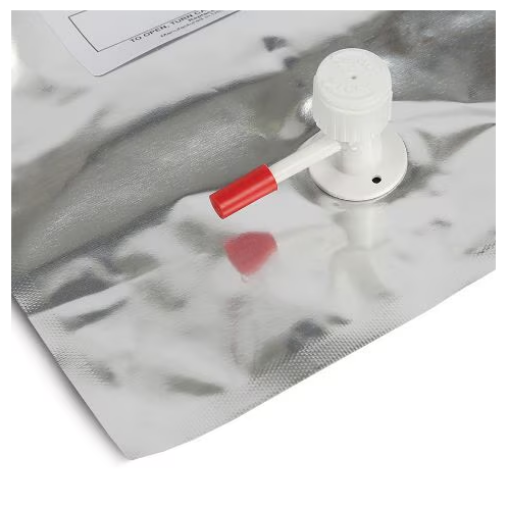

    Sampling bags are low-cost, whole-air sampling devices for VOCs and permanent gases. Several EPA, NIOSH, and OSHA methods exist for bag sampling for a variety of applications: stationary sources emissions; workplace atmospheres; ambient, indoor air quality; and breath analysis. All our multi-layer foil bags feature a polypropylene combo valve with hose connection to fit 3/16" ID tubing and syringe port with replaceable septum. A single eyelet provides handling convenience.

    Physical Specifications
    Composition: 4-layer— 60 gauge nylon (outer layer); Polyethylene; 0.0003" aluminum foil; 0.002" polyethylene (inner layer)
    Thickness: 0.004"
    Tensile Strength: 19 lb/in
    Max. Operating Temp.: 82 °C (180 °F)
    Specific Gravity: 1.09 g/mL
    Oxygen Permeability: 0.0078 cc / m2 / day @ 0% RH, 23 °C
    Water Vapor Permeability: 0.0078 g / m2 / day @ 90% RH, 40 °C
    Carbon Dioxide Permeability: 0.0078 cc / m2 / day

    Features & Benefits

    • Good stability for low molecular weight compounds, such as methane, CO, CO2, and permanent gases.
    • Chemically inert with light and moisture protection.
    • Not recommended for low ppm VOCs due to background levels.
    • Protective 4-layer barrier minimizes gas permeability:
      • 60 gauge nylon (outer layer)
      • Polyethylene
      • 0.0003" aluminum foil
      • 0.002" polyethylene (inner layer)
    • Maximum operating temperature: 82 °C (180 °F).
    Produktspesifikasjoner
    Volum12 L
    MaterialeMulti-Layer
    *
    *
    *
    Enhet:
    PK/5
