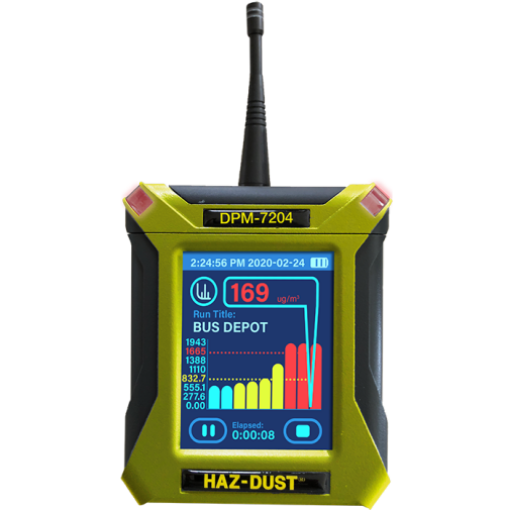

    HAZ-DUST DPM-7204 PERSONAL DIESEL PARTICULATE MONITOR

    Produsent: SKC LTD
    Varenr: 770-750A
    Tilgjengelighet: Bestillingsvare
    Kontakt oss for pris

    The Haz-Dust DPM-7204 is a portable, personal diesel particulate monitor designed for Industrial Hygiene and Environmental air investigations. Worn individually, it measures diesel particulate matter in the breathing zone with real-time data and graph reporting. It’s the only direct-reading aerosol monitor calibrated for occupational diesel exposure, featuring a flow-compensated pump and a 37mm filter cassette for NIOSH 5040 carbon analysis. Using near-forward light scattering of infrared radiation, its optical sensor detects airborne particles, with light scatter proportional to concentration. Signal processing reduces noise and drift, displaying continuous dust levels in mg/m³.

    Accuracy±10% to filter gravimetric SAE fine test dust
    Sensing Range0.001 to 500 mg/m3 or 1 to 500,000 µg/m3
    Display Resolution1 µg/m3 (0.001 mg/m3)
    Particle Size Range0.1 to 100 µm
    Measurement Precision±0.02 mg/m3
    CalibrationNIOSH Method 0600 gravimetric reference - NIST-traceable SAE fine test dust
    Display 9 cm color
    Displayed Particle ConcentrationInstantaneous, TWA, STEL, Minimum, Maximum
    Sample Flow Rate1 to 5 L/min
    PowerRechargeable Li-Ion bat.
    Operating Time≥22 hours
    Charging Time3 hours
    Digital OutputMicro USB
    Data Storage43200 data points
    TemperatureOperating: 0 to +50°C
    DimensionsCase: 8.9 x 5.7 x 12.1 cm
    Weight517 g
    *
    *
    *
    Enhet:
    STK
