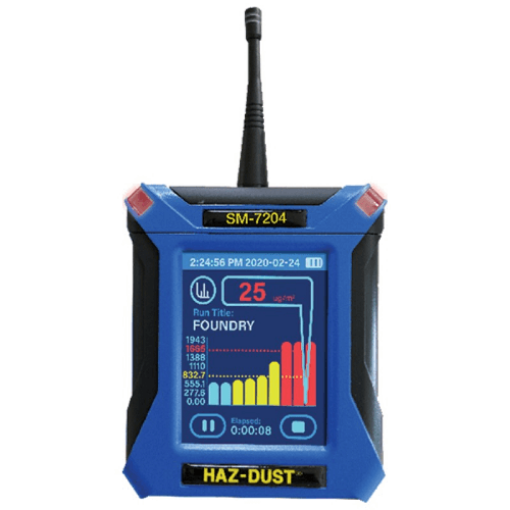

HAZ-DUST SM-7204 PERSONAL SILICA MONITOR

HAZ-DUST SM-7204

A real-time aerosol monitor designed for measuring particulate concentration in environments with silica dust. It provides immediate identification of problem areas and evaluates control measures' effectiveness.

Key Features:

Real-time monitoring: Instant display of TWA, STEL, Min/Max concentration (mg/m³).
Personal sampling: Sensor mounts in the breathing zone.
Interchangeable inlets: Measures Inhalable (0.1–100 µm), Thoracic (0.1–50 µm), and Respirable (0.1–10 µm) particles.
Dual function: Provides both real-time readings and a filter sample for lab analysis.
Data logging & software: Stores 43,200 data points, downloadable via USB.
Long battery life: Operates up to 22 hours on a rechargeable Li-Ion battery.

Specifications:
Accuracy: ±10% to SAE fine test dust (NIOSH Method 0600).
Sensing range: 0.001–500 mg/m³ (1–500,000 µg/m³).
Flow rate: 1–5 L/min, auto-adjusting.
Display: 3.5” color screen with auto-dimming.
Size & weight: 8.9 × 5.7 × 12.1 cm, 508 g.
Operating temperature: 0 to +50°C.

Ideal for monitoring airborne particulates and compliance with occupational safety standards.
