Heating Only HPLC Column Oven C.I.L

Heating Only HPLC Column Oven

Easy to use single column heater with temperature range from room temperature to 90.0°C

Description

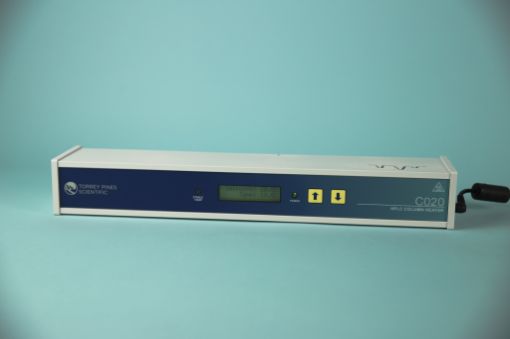

The C020 HPLC column heater is compact and easy to use. It is powered by a universal bench-top power supply for use anywhere in the world. The unit has a 1 4" long silicone rubber heater under the chamber to provide uniform chamber temperatures.

Setting the temperature is easy. Simply touch the UP or DOWN arrows to scroll the target
temperature to the desired level. Target and Actual temperatures are displayed continuously on a
two-line, backlit alphanumeric display. When the target temperature is reached and settles to
within +/- 0.2°C the Stable Temp light will illuminate.

Features
• Digitally heat from room temperature to 90.0°C
• Readable and settable to +/- 0.1°C
• Stable to +/- 0.1°C
• Accurate to +/- 0.2°C
• Displays Target and Actual Temperature
• Stable Temperature indicator light illuminates when target temperature is stable to +/-0.2°C
• Holds 1-30 cm long by 1/4” or 3/8” diameter column
• Chamber size 15.0” (381 mm) long x 0.9” (22.9 mm) wide x 1.25" (31.75 mm) deep
• Resettable injection counter to 1000 column injections
• 30-day count down timer with alarm and user settable Auto-Off
• Platinum RTD temperature sensor
• PID temperature control
• Electronic calibration held in memory
• UL, CSA and CE compliantApplications
• Set above ambient temperatures exactly for better separations
• Stable and exact elevated temperatures for best results from RI detectors
• Exact temperature control for impurity chromatography
