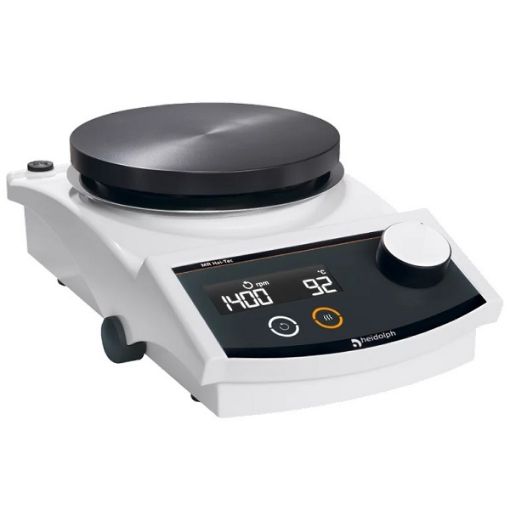

Hei-Tec
Stirring and heating with Pt1000
Hei-Tec is the classic model among magnetic stirrers. It enables users to gently stir up to 1,400 rpm and to heat up to a temperature of 300°C with a high degree of precision.
The patented Kera-Disk® footprint made of anodized aluminum, is chemically resistant, scratch-proof, and has a diameter of 145 mm. This unique size makes it suitable for use with many accessories and samples on a small footprint. The material used also enables the fastest heating times.
The Hei-Tec magnetic stirrer provides a digital display for setting your desired temperature exactly to the degree. This precise temperature without overshooting is controlled by two selectable heating modes (FAST/PRECISE) and the optional external temperature sensor Pt1000.
| Rotation speed range | 100 - 1,400 rpm |
|---|
| Speed accuracy | ±2 % |
|---|
| Max. stirring capacity (H2O) | 20 l |
|---|
| Hotplate temperature | 20 - 300 °C |
|---|
| Heating power | 800 W |
|---|
| Accuracy temperature setting | ±1°C |
|---|
| Temperature accuracy with external temp. sensor | ±1 °C |
|---|
| Safety circuit hotplate | 25 °C over hotplate temperature |
|---|
| Plate diameter ø | 145 mm |
|---|
| Plate material | Kera-Disk® (Silumin with ceramic coating) |
|---|
| Sensor breakage protection | With Pt1000 |
|---|
| Residual heat indicator | yes |
|---|
| Smooth start | yes |
|---|
| Analog / digital interface | - |
|---|
| Timer | - |
|---|
| Protection class DIN EN 60529 | IP 32 |
|---|
