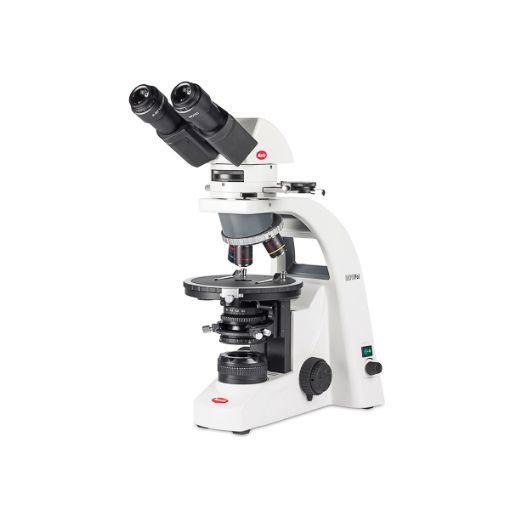

Professional petrographic microscope MOTIC BA-310 POL, binocular, EU plug

Binocular head or trinocular head Siedentopf type, 30º inclined (Light split 100:0/20:80). Widefield high eyepoint N-WFPL10X/20 mm eyepieces with dioptric adjustment and protectors in both eyepieces. Crosshair reticle on one eyepiece. Intermediate tube with rotatable analyzer 360º and Bertrand lens. Empty insertion plate. Reversed quadruple revolving nosepiece, single positions centrable. CCIS EC Plan Strain-free objectives EC PL 4X, 10X, 40X S, 60X S. Coaxial coarse and fine focusing with tension adjustment. 360º circular rotating stage. Achromat swing-out condenser N.A. 0.90/0.13 (strain-free) with iris diaphragm. Rotatable polarizer, fixed on condenser carrier. Koehler illumination quartz halogen 6V/30W with intensity control. Universal supply 100-240 V (CE). 45mm blue filter, power cord, Allen hexagonal key, vinyl dust cover. 5 years warranty on optical and mechanical components. Delivery time 2-3 weeks

description: microscope MOTIC BA-310 POL, binocular, pcs per sales unit: 1, sales unit reference: BM30-H02-001
